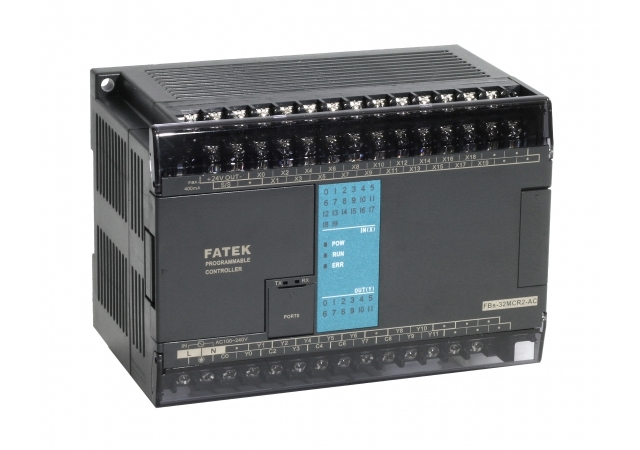

FBS Series Fatek PLC

FBS Series Fatek PLC Specification

Cover Material
Polycarbonate

Rated Operation Voltage
24V DC

Connectivity Type
Ethernet, RS232, RS485

Operating Voltage
24V DC

Features
High-Speed Processing, Modular Expansion, Reliable Operation

Current Rating
2A

Thickness
Standard Module Size

Cabinet Material
Plastic

Protection Class
Class II

Rated Insulation Voltage
500V AC

Rated Current
2A

Cooling System
Natural Air Cooling

Protection Level
IP20

Panel Type
Modular Mount

Way
Modular

Control System
Microprocessor Based

Components
Main unit, I/O modules, Communication ports

Base Material
Polycarbonate

Product Type
FBS Series Fatek PLC

Material
Plastic and Electronic Components

Surface Finish
Matte

Standard
IEC

Surface Color
Black

Rated Voltage
12 V DC,24 V DC Volt (V)

Frequency (MHz)
50-60 Hz

Maximum Output Current
2A

Dimension (L*W*H)
Varies by Model (Example: 108 x 90 x 80 mm)

Warranty
1 Year

Application
Industrial Automation, Process Control

IP Rating
IP20

Display Type
LED Indicators

Communication Ports
Ethernet, RS232, RS485

Input Points
Up to 256 digital inputs (expandable)

Response Time
< 0.5 ms

Programming Language
Ladder Diagram, Instruction List

Memory Capacity
32k Steps (Program Memory)

Operating Temperature
0C to 55C

Mounting Type
DIN Rail or Panel Mount

Output Points
Up to 256 digital outputs (expandable)

FBS Series Fatek PLC Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
7 Days

FBS Series Fatek PLC About

Minimum Order Quantity	1 Piece
Series	FBs-Series
Series Type	FBs
Controller Type	Compact PLC
No Of I O Points	14 I O
Input Voltage	24 V DC
Programming Software	WinProladder
Communication Port	RS485
Output Type	Digital
Brand	Fatek
Mounting Type	Panel Mount
Usage/Application	Industrial
Number of Inputs	24 Digits
Power	12 V DC,24 V DC

Technical Details

Highly Expandable Configuration

The FBS Series Fatek PLC allows for flexible expansion, supporting up to 256 digital inputs and outputs through modular I/O additions. This makes it adaptable for both small and large scale industrial environments, enabling easy upgrades as system requirements grow without major changes to the control panel layout.

Versatile Communication and Control

Equipped with Ethernet, RS232, and RS485 ports, this PLC offers seamless integration with other automation devices and supervisory control systems. Support for industry-standard programming languages (Ladder Diagram and Instruction List) ensures compatibility with existing and new automation installations.

FAQ's of FBS Series Fatek PLC:

Q: How can additional input and output points be added to the FBS Series Fatek PLC?

A: The FBS Series Fatek PLC is designed for modular expansion, allowing users to easily add input and output modules as required. Simply attach compatible I/O modules to extend control capability up to 256 digital inputs and 256 outputs without extensive rewiring.

Q: What programming languages are supported by the FBS Series Fatek PLC?

A: This PLC supports Ladder Diagram and Instruction List programming, facilitating intuitive logic development and enabling engineers to choose their preferred programming style for automation applications.

Q: Where is the FBS Series Fatek PLC typically installed?

A: The PLC is suitable for DIN rail or panel mounting, allowing installation within standard electrical cabinets commonly found in industrial automation and process control environments.

Q: What benefits does the PLC's fast response time provide to users?

A: With a response time of less than 0.5 ms, the FBS PLC delivers precise, real-time control, making it ideal for high-speed automation processes where timing accuracy is essential for quality and efficiency.

Q: How does the FBS Series Fatek PLC ensure safe and reliable operation?

A: Featuring a polycarbonate enclosure, IP20 protection, Class II insulation, and compliance with IEC standards, the PLC safeguards internal electronics against dust and accidental contact, ensuring long-term reliable performance in industrial conditions.

Q: What applications are ideal for using the FBS Series Fatek PLC?

A: This PLC is well-suited for industrial automation and process control tasks, including machinery operation, production line management, and integration in distributed control systems thanks to its modularity, robust connectivity, and powerful processing capabilities.

Q: What is the process for programming and commissioning the PLC?

A: To program the FBS Series PLC, users connect via supported communication ports and use Fatek's programming software to develop control logic in Ladder or Instruction List formats. After uploading the program, commissioning involves testing I/O modules, verifying communication, and ensuring correct interaction with field devices.
